DREDGING DETAILS

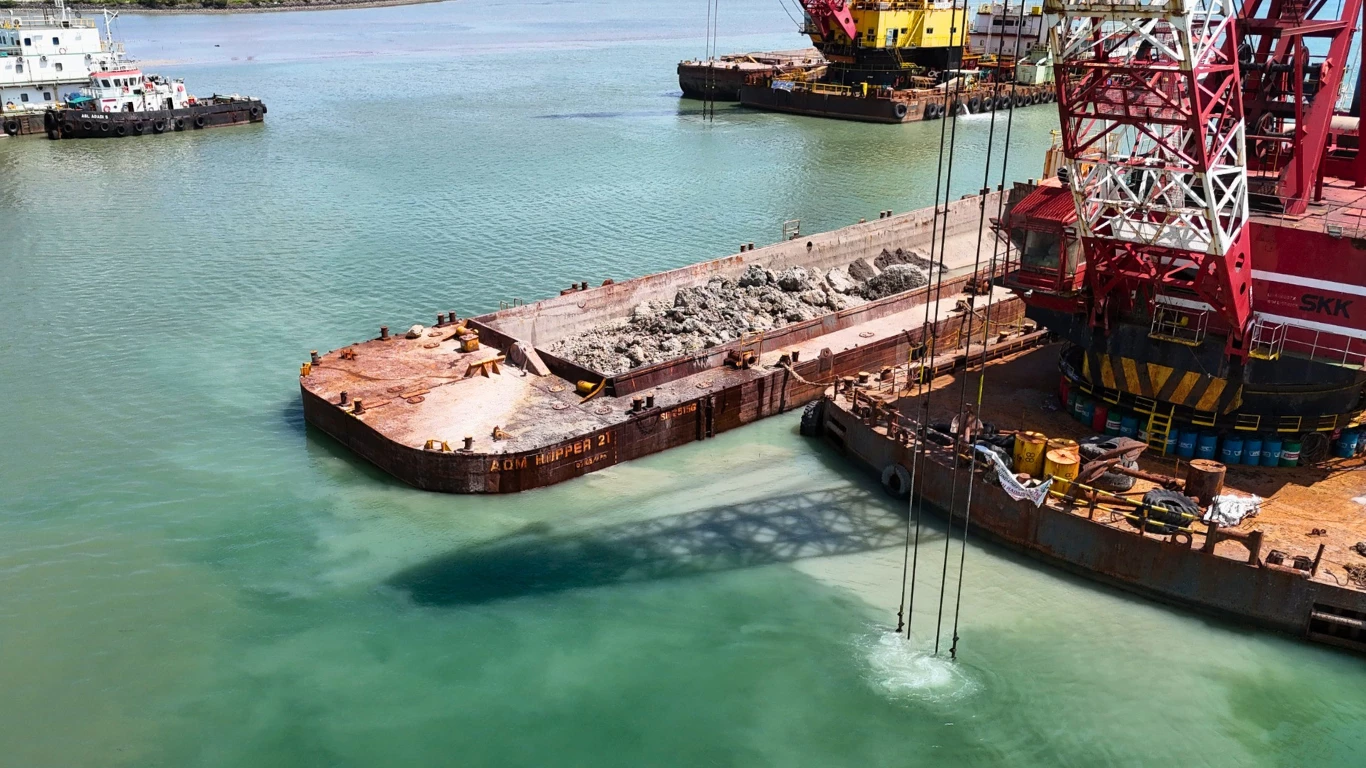

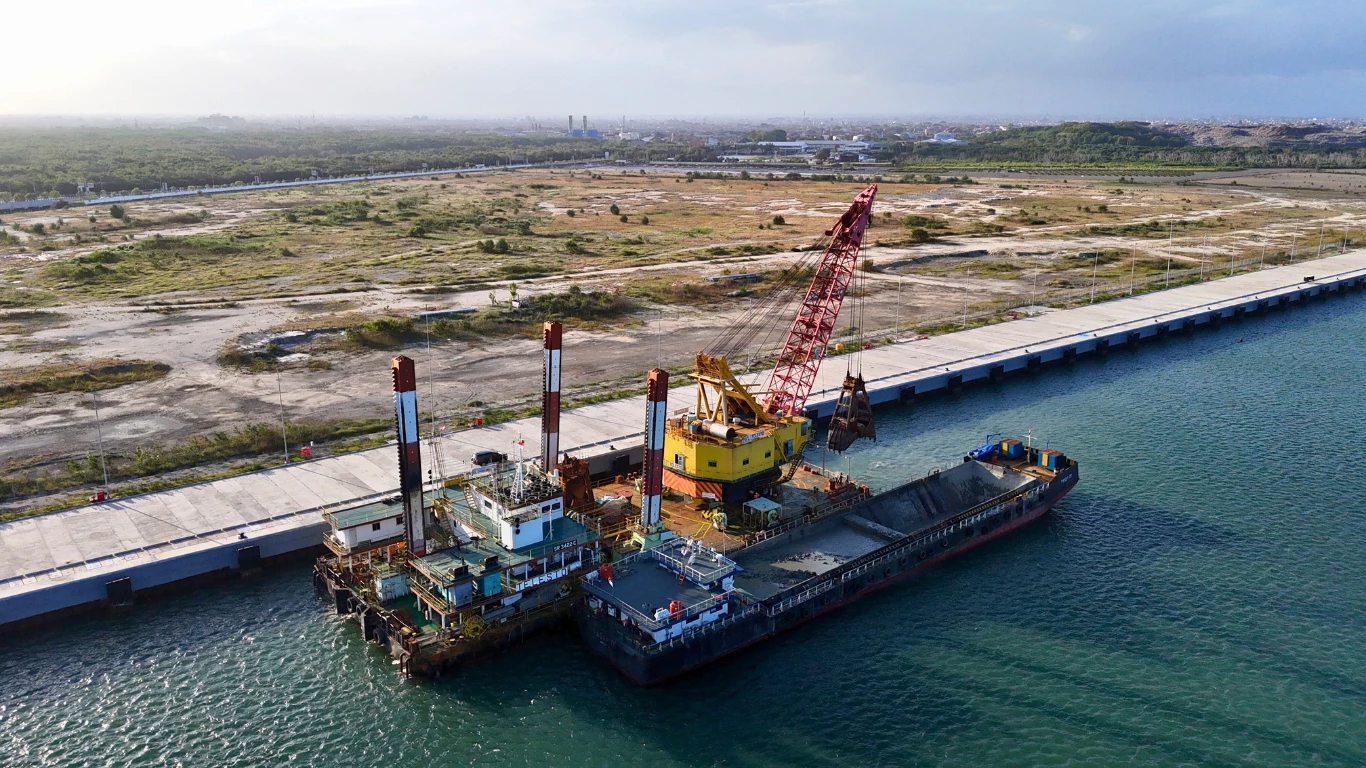

TELESTO Specification
General Information
| Port of Registry | : | Batam, Indonesia |
| Year Built | : | 2013 |
| Location of Built | : | South Korea |
| Classification | : | BKI |
| Work Area | : | International Voyage |
| Type | : | Steel Crane Barge |
| Propulsion | : | Non Self Propeller |
| Accommodation | : | 17 Crew |
Principal Dimensions
| Length Overall | : | 61 meters |
| Breadth Moulded | : | 25 meters |
| Depth Moulded | : | 4.5 meters |
| GT / NT | : | 50T | 2026 / 608
| Draught Empty / Max | : | 2.2 m / 2.6 m |
| Generators | : | 3 Unit x 500 KVA |
| Hammer Weight | : | 50T |
Crane Specification
| Model | : | YC110-150GC |
| Clam shell Bucket | : | 22m³ / 66 Ton |
| 10m³ / 90 Ton | ||
| Chisel Hammer | : | 50 Ton |
| Direct Pull / SWL | : | 110 Ton / 150 Ton |
| Dredging Depth | : | 60m |
| Winding Speed | : | 55m /min |
| Dredger Boom | : | 30 m ~ 46 m |
SPUD Information
| Spuds | : | 3 Units - 1 Fix & 2 Mobile |
| Dimensions | : | Length 18 meters |
| 1500mm x 1500mm | ||
| Type | : | Hydraulic self raising |
| Anchors | : | 4 unit x 6 Ton |

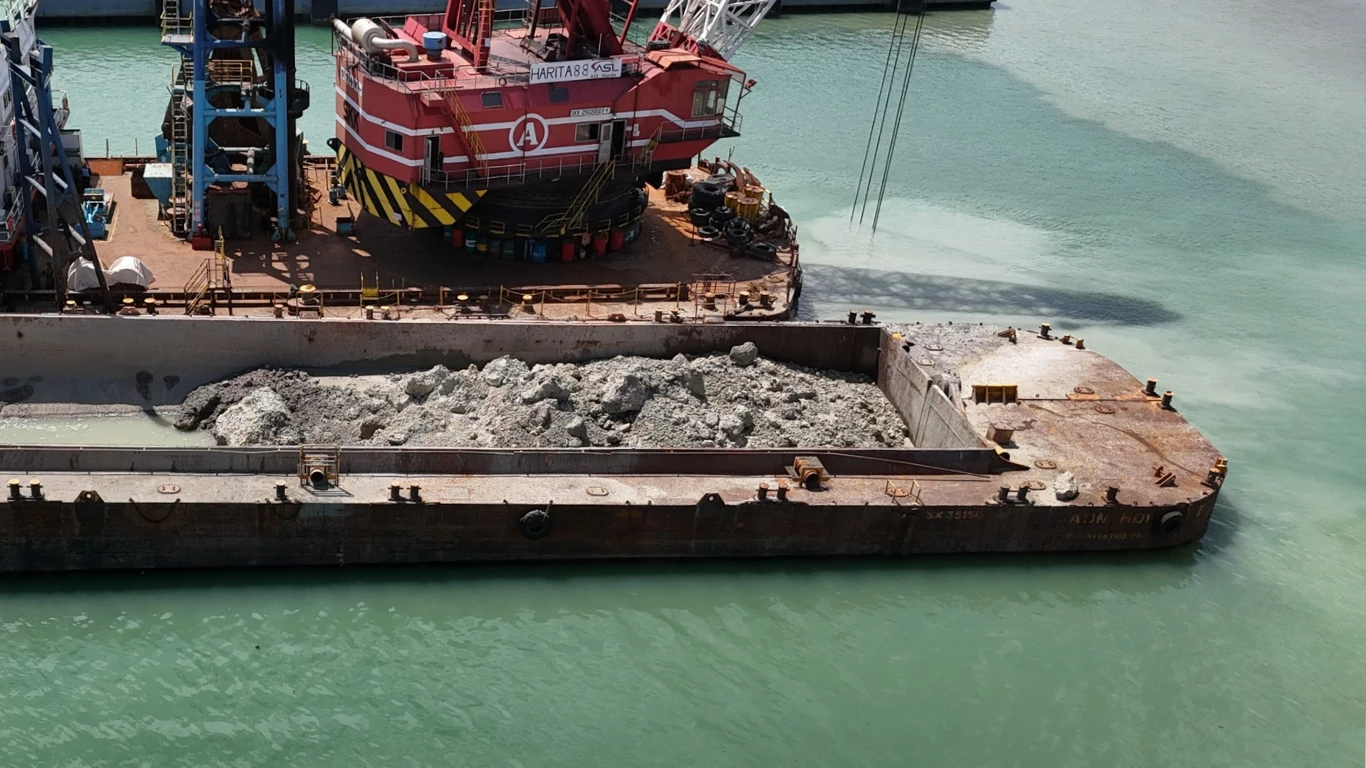

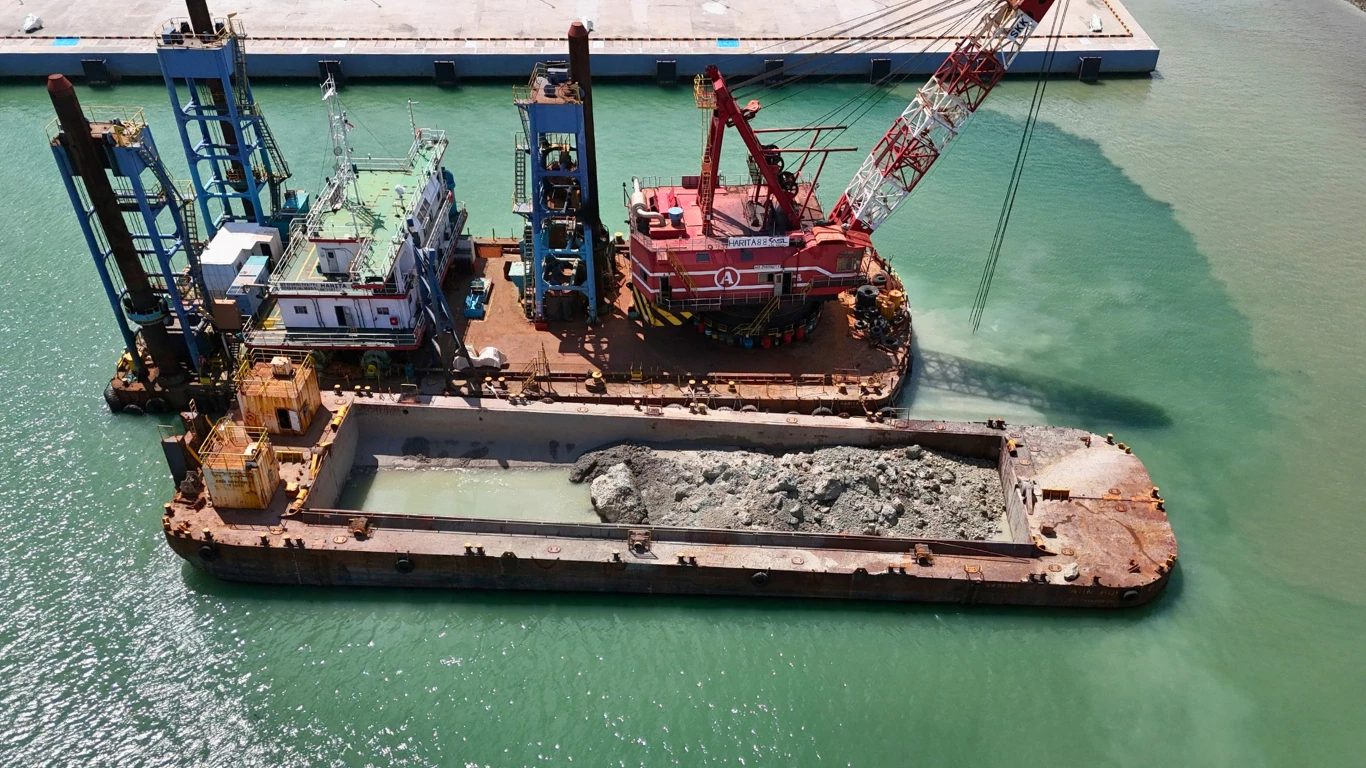

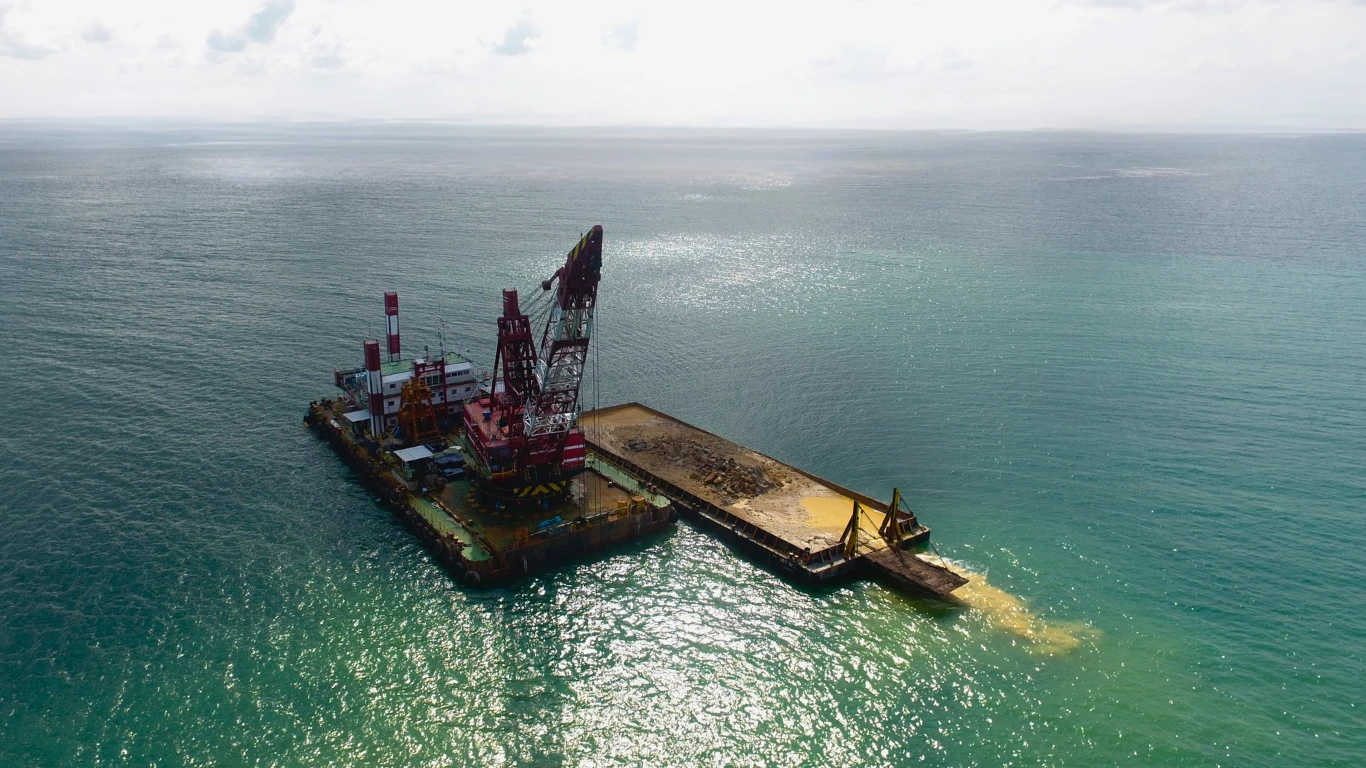

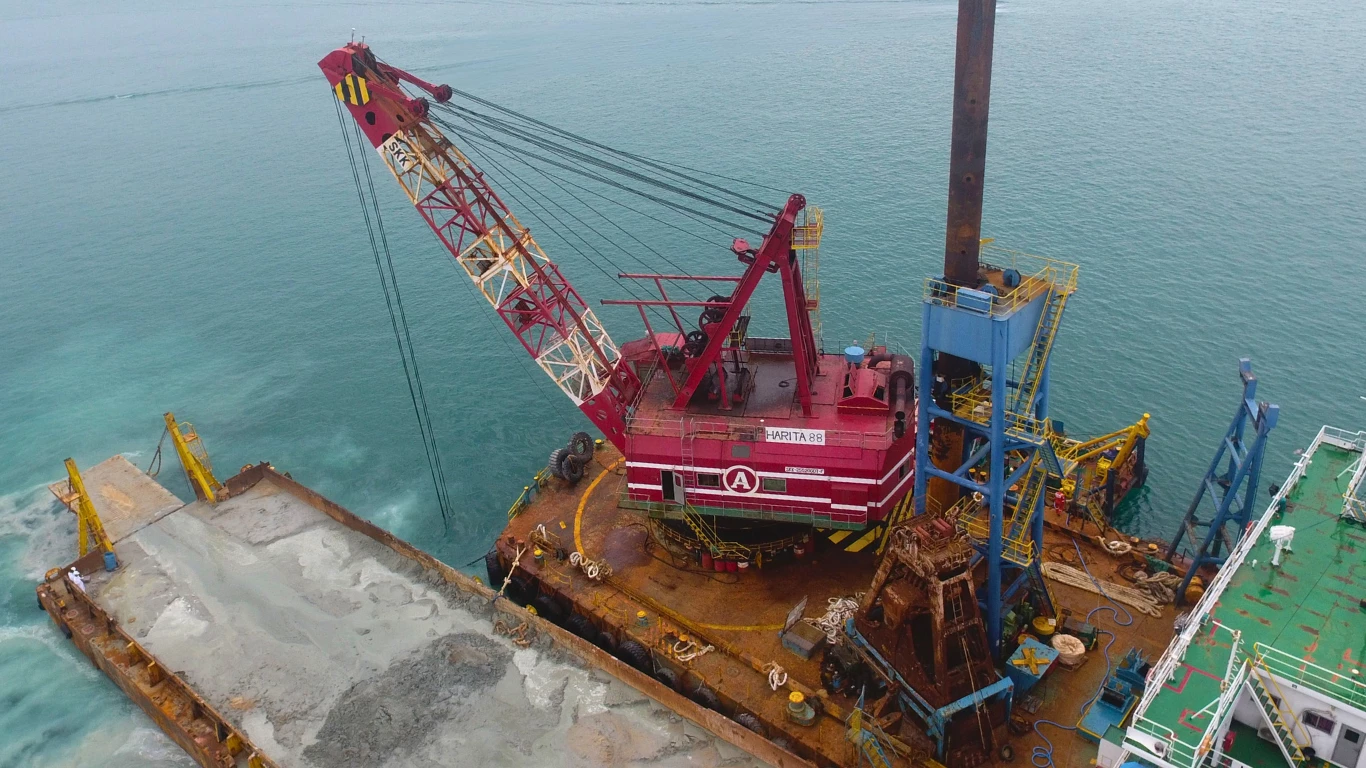

HARITA 88 Specification
General Information
| Port of Registry | : | Dumai, Indonesia |
| Year Built | : | 1998 |
| Location of Built | : | Japan |
| Classification | : | RINA |
| Work Area | : | International Voyage |
| Type | : | Pontoon Crane |
| Propulsion | : | Non Self Propeller |
| Accommodation | : | 21 Crew |
Principal Dimensions
| Length Overall | : | 53.76 meters |
| Breadth Moulded | : | 22.00 meters |
| Depth Moulded | : | 4.00 meters |
| GT / NT | : | 50T | 1758 / 528
| Draught Empty / Max | : | 2.0 m / 2.4 m |
| Generators | : | 2 Unit x 400 KVA |
| 1 Unit x 300 KVA | ||
| 2 Unit x 75 KVA |
Crane Specification
| Model | : | SKK-25030GDT-F Type |
| Clam shell Bucket | : | 20m³ / 60 Ton |
| 13m³ / 75 Ton | ||
| Direct Pull / SWL | : | 100 Ton / 130 Ton |
| Dredging Depth | : | -50.0 m ~+ 10.0 m |
| Hoisting Speed | : | 80.0 m /min (lowering) |
| 50.0 m /min (raising) | ||
| Working Radius | : | 15.7 m ~ 22.2 m |
Mooring System
| Spuds | : | 3 Units - 1 Fix & 1 Mobile |
| Dimensions | : | 1300mm Dia x 38.0 m |
| (50 Ton ea) | ||
| Type | : | Hydraulic self raising |
| Anchors | : | 4 unit x 4 Ton |

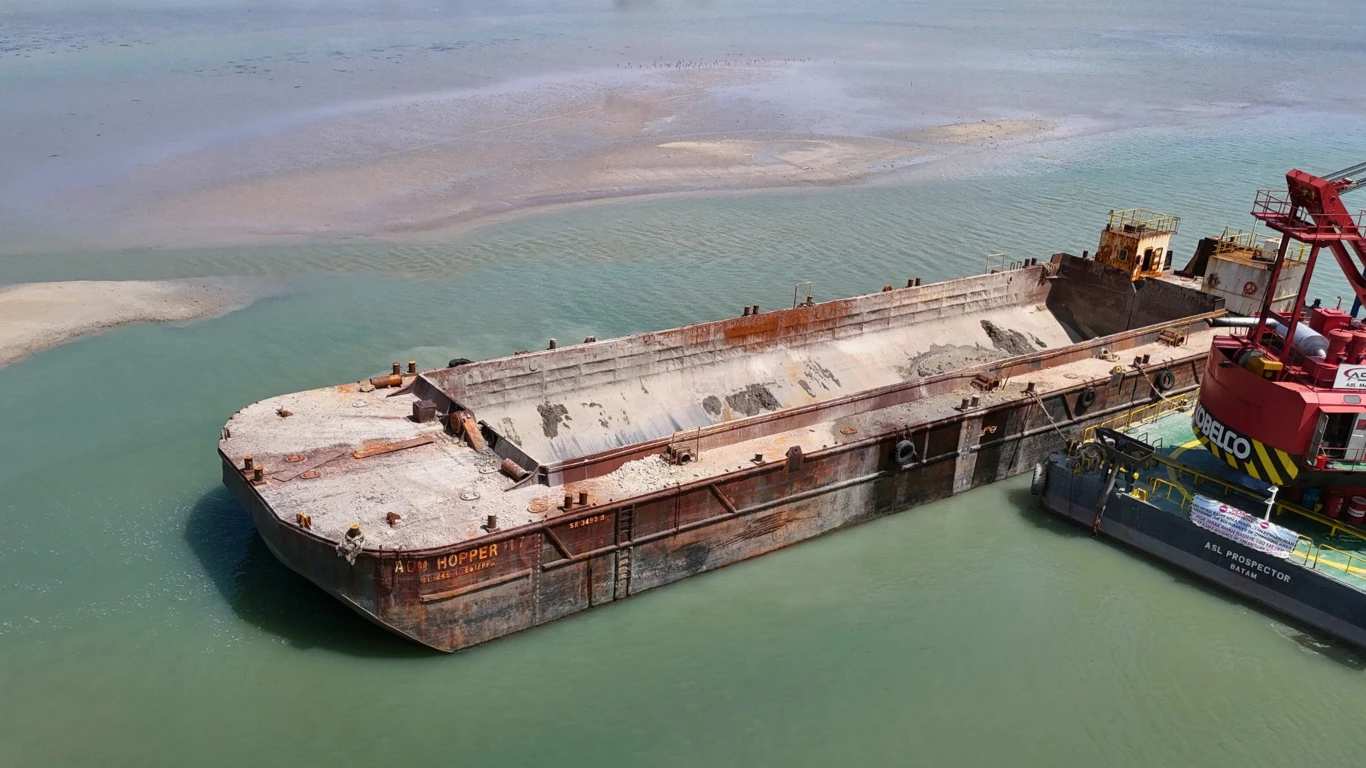

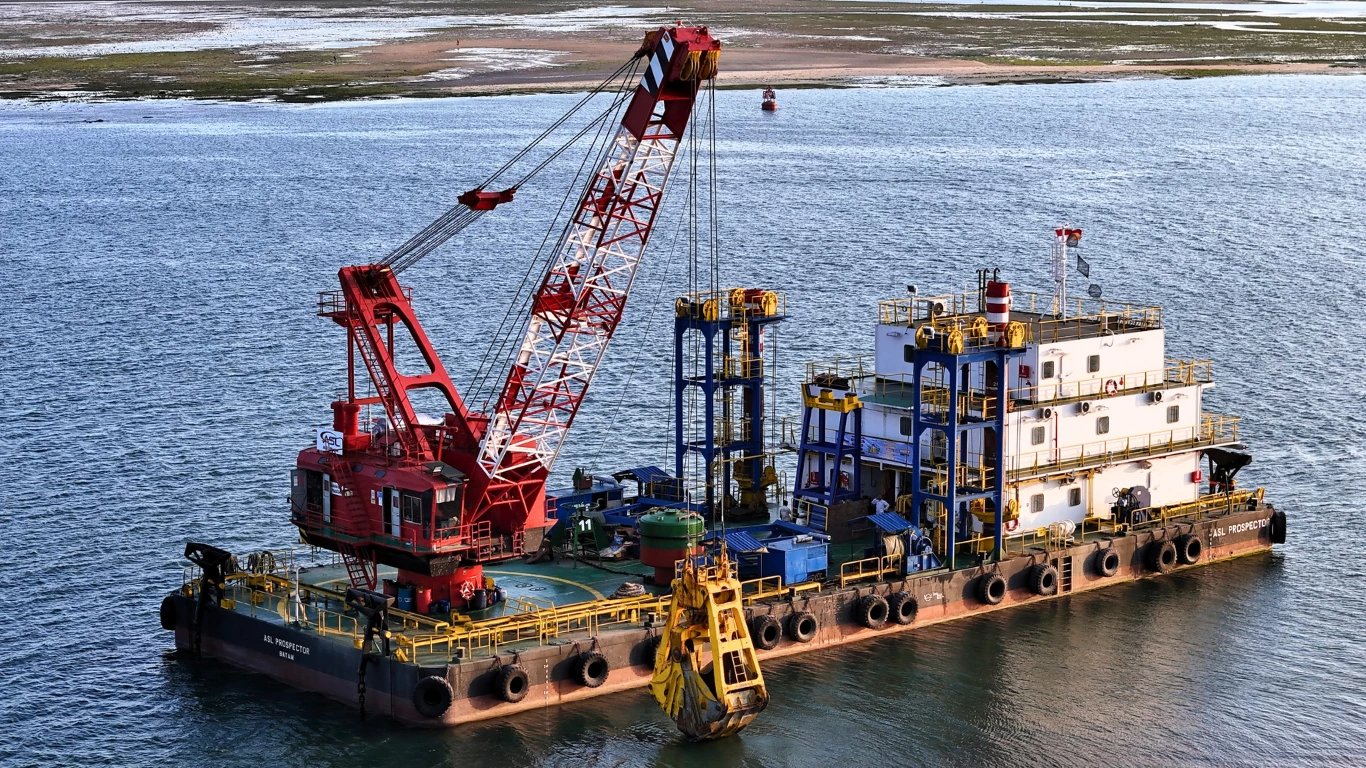

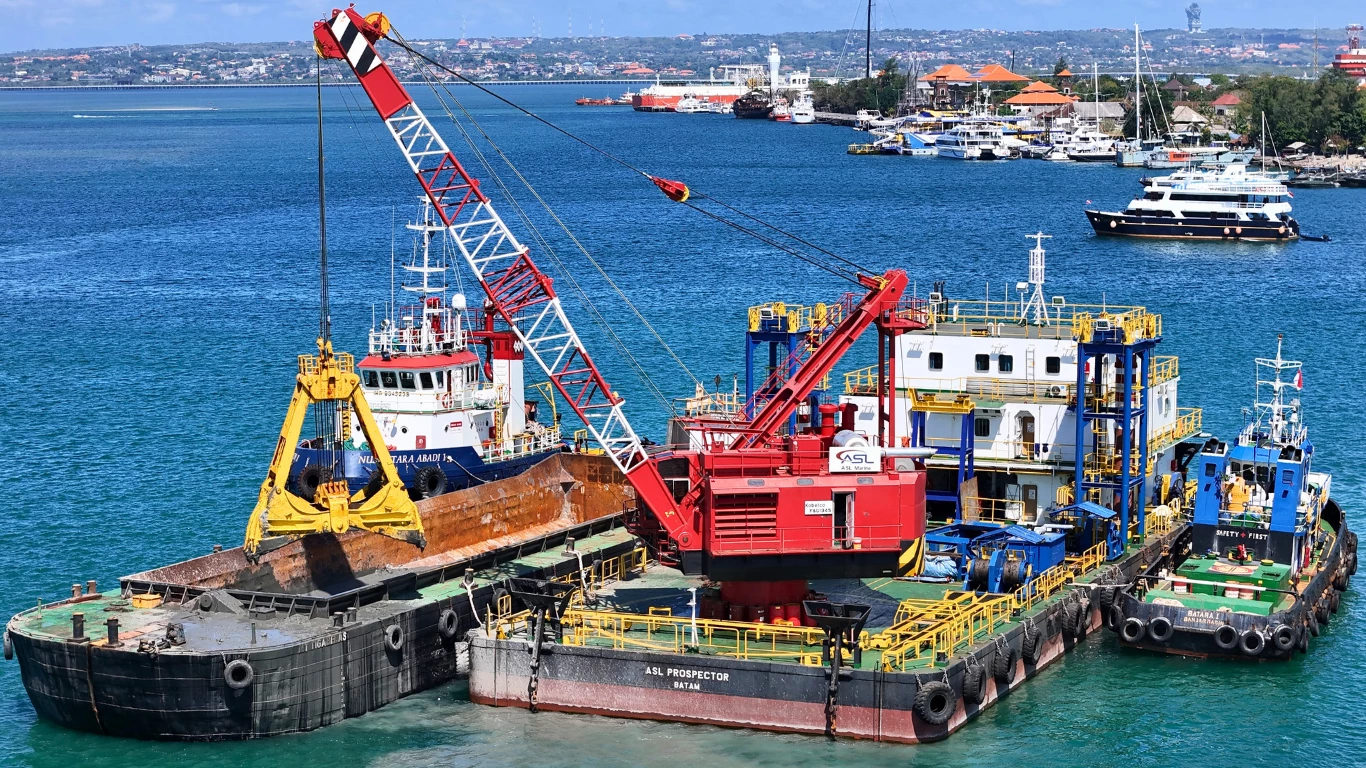

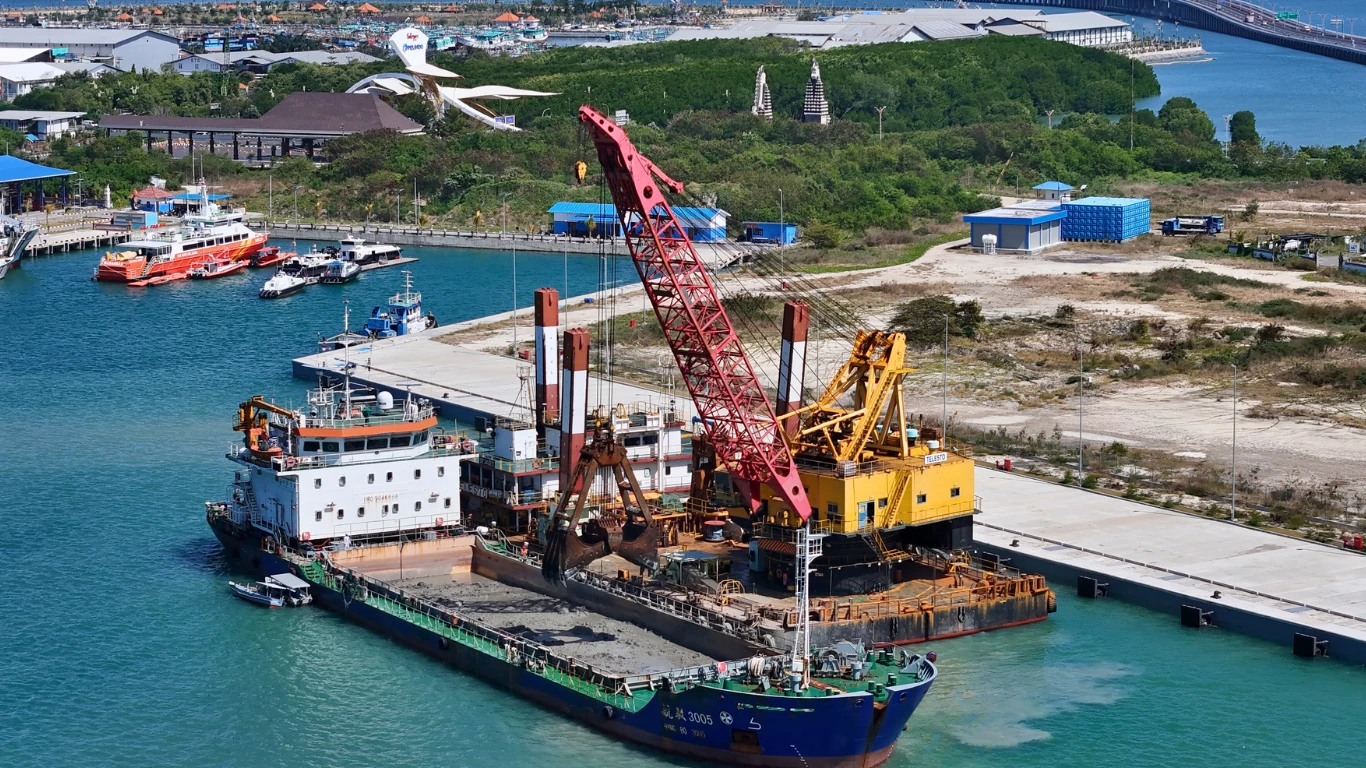

PROSPECTOR Specification
General Information
| Port of Registry | : | Batam, Indonesia |
| Year Built | : | 2023 |
| Location of Built | : | ASL Shipyard, Indonesia |
| Classification | : | RINA |
| Work Area | : | International Voyage |
| Type | : | Pontoon Crane |
| Propulsion | : | Non Self Propeller |
Principal Dimensions
| Length Overall | : | 48.80 meters |
| Breadth Moulded | : | 18.30 meters |
| Depth Moulded | : | 3.66 meters |
| GT / NT | : | 50T | 1172 / 352
| Draught Empty / Max | : | 1.8 m / 2.2 m |
| Generators | : | 2 Unit x 150 KVA |
Crane Specification
| Model | : | KOBELCO F&G 1345 |
| Clam shell Bucket | : | 11m³ / 27 Ton (Light) |
| 10m³ /20 Ton (Heavy) | ||
| Direct Pull / SWL | : | 45 Ton |
| Working Radius | : | 16.4 m |
| Dredging Depth | : | -40.0 m ~+ 10.0 m |
| Hoisting Speed | : | 60.0 m /min |
Mooring System
| Spuds | : | 2 Units - 1 Fix |
| Dimensions | : | 914 mm Dia x 25.0 m L |
| Type | : | 13 Ton approximate |
| Type | : | Hydraulic self raising |
| : | 4 unit x 3 Ton |

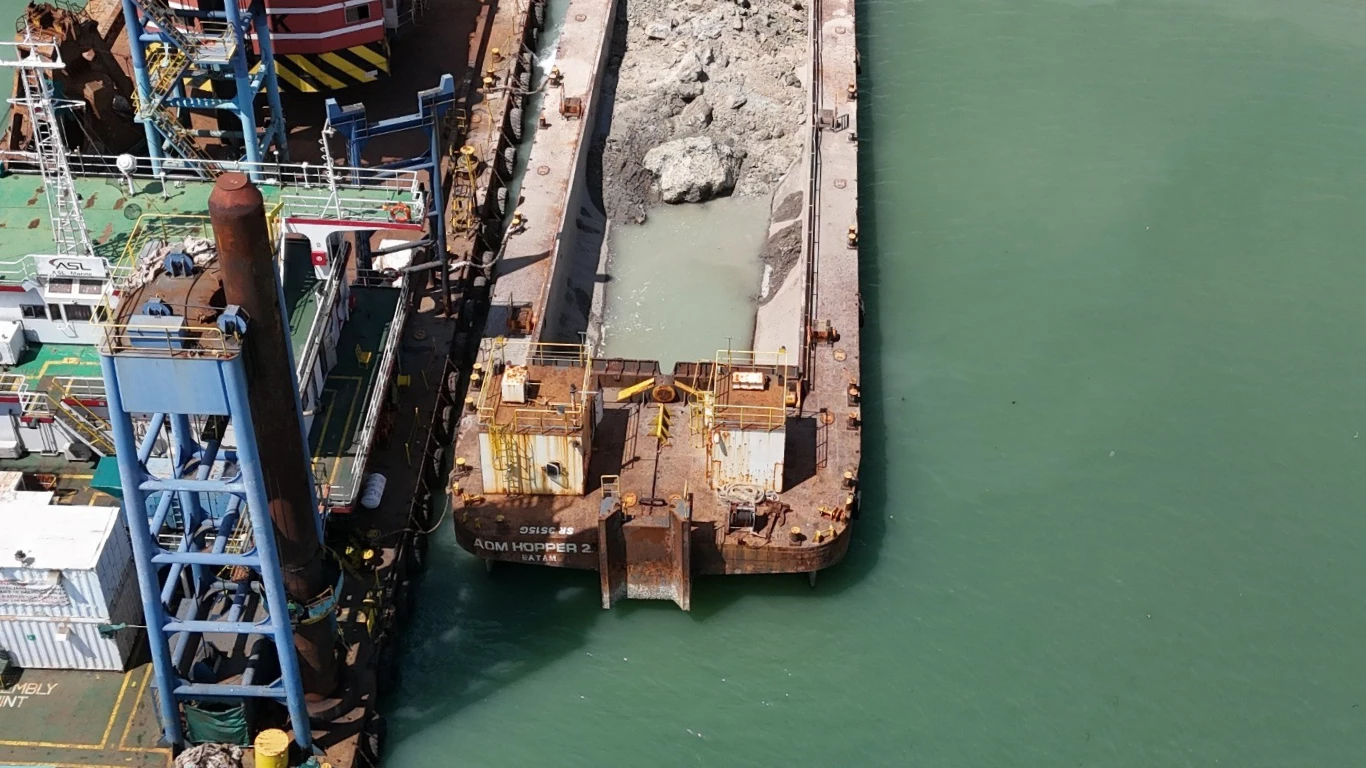

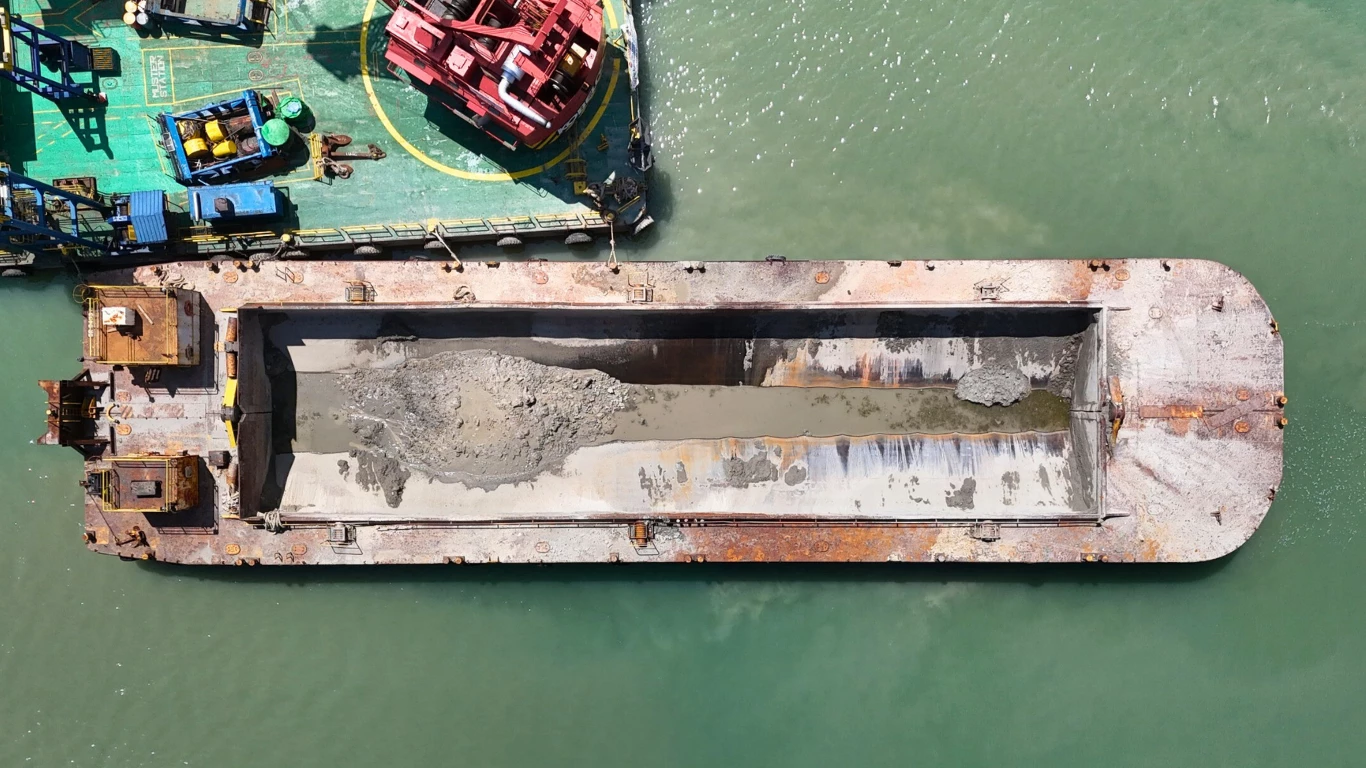

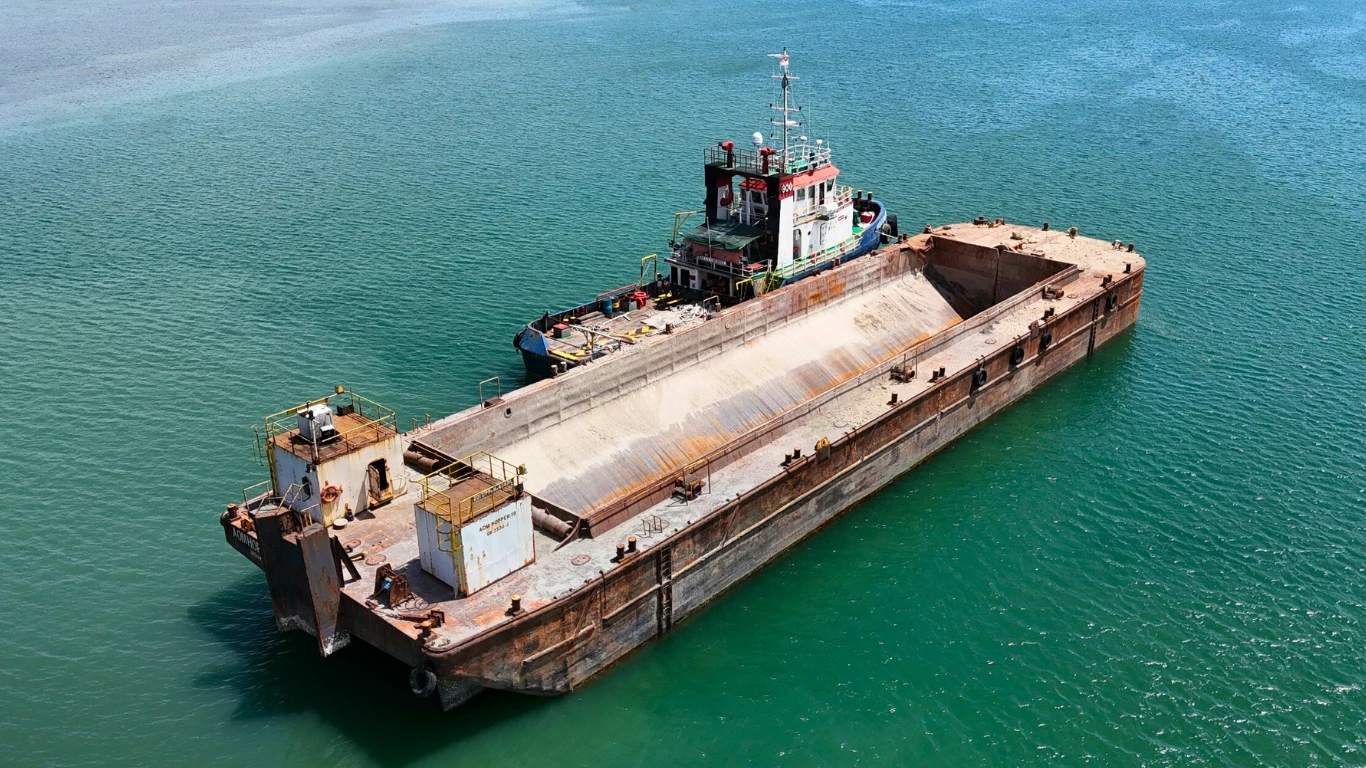

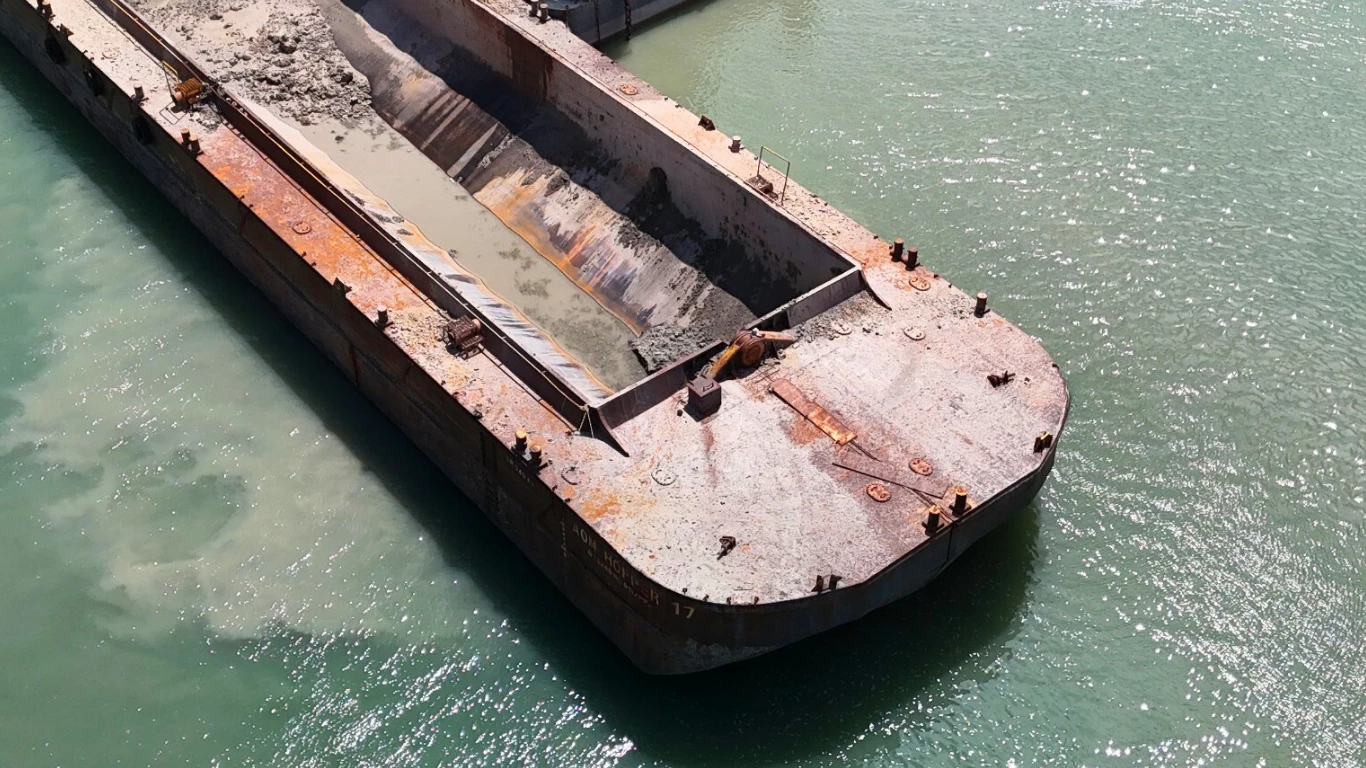

AOM HOPPER 2 Specification
General Information
| Type | : | Hopper Barge |
| Class | : | DNV |
| Feet | : | 168 |
| Year of build | : | 2011 |
| Work scope | : | International Voyage |
| Length | : | 160 ft |
| GT | : | 717 |
| Capacity | : | 1.000 m³ |

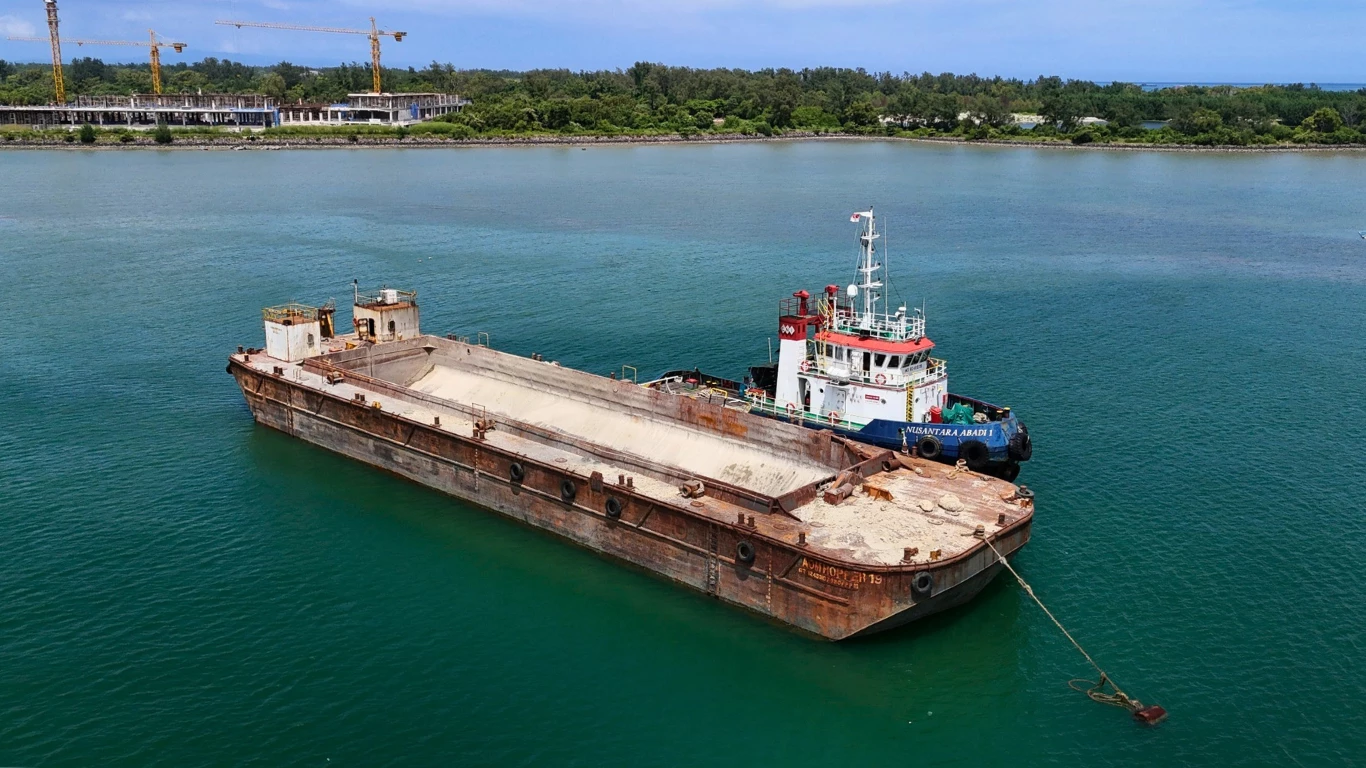

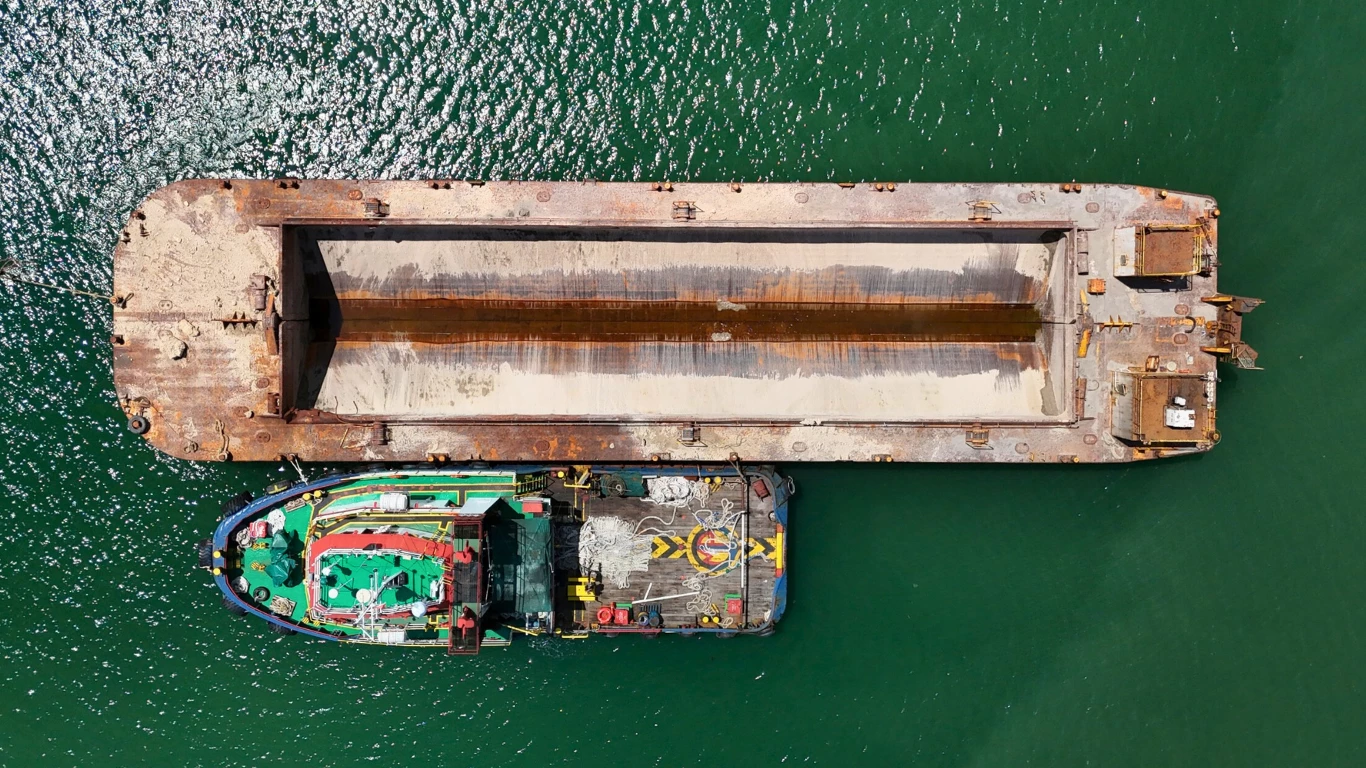

AOM HOPPER 17 Specification
General Information
| Type | : | Hopper Barge |
| Class | : | DNV |
| Feet | : | 197 |
| Year of build | : | 2014 |
| Work scope | : | International Voyage |
| Length | : | 180 ft |
| GT | : | 1265 |
| Capacity | : | 1.500 m³ |
AOM HOPPER 18 Specification
General Information
| Type | : | Hopper Barge |
| Class | : | BV |
| Feet | : | 197 |
| Year of build | : | 2015 |
| Work scope | : | Indonesia Voyage |
| Length | : | 180 ft |
| GT | : | 1265 |
| Capacity | : | 1.500 m³ |
AOM HOPPER 19 Specification
General Information
| Type | : | Hopper Barge |
| Class | : | RINA |
| Feet | : | 197 |
| Year of build | : | 2015 |
| Work scope | : | International Voyage |
| Length | : | 180 ft |
| GT | : | 1265 |
| Capacity | : | 1.500 m³ |
AOM HOPPER 21 Specification
General Information
| Type | : | Hopper Barge |
| Class | : | BV |
| Feet | : | 197 |
| Year of build | : | 2014 |
| Work scope | : | International Voyage |
| Length | : | 180 ft |
| GT | : | 1265 |
| Capacity | : | 1.500 m³ |
